Buyers spend hundreds of dollars on portable power stations and battery banks based on advertised watt-hour capacity, yet manufacturer ratings often reflect ideal conditions that don't match real use. A 500 Wh label might sound reassuring, but that number frequently represents total cell capacity before conversion losses, battery management system overhead, and voltage sag under load cut into what you can actually draw.
Manufacturers measure at optimal discharge rates. You pull power under stress.
The difference matters when you're counting on that battery to run a CPAP through the night or keep a refrigerator cold during an outage. Labels may cite capacity at the cell level, while usable output after the inverter, DC-DC converters, and protection circuits do their work can drop by fifteen to twenty-five percent. Voltage sag under heavy load shrinks capacity further, especially as the battery nears depletion.
Load testing is the only way to verify what you actually paid for. It measures real-world delivery: how many watt-hours flow out of the output ports under a controlled draw until the battery management system triggers cutoff. The result tells you whether the manufacturer's claim holds up and whether you have enough reserve to avoid discovering shortfalls during an emergency. Without a load test, you're trusting a number that was never meant to describe your scenario.
What You'll Need: Gathering Your Testing Equipment

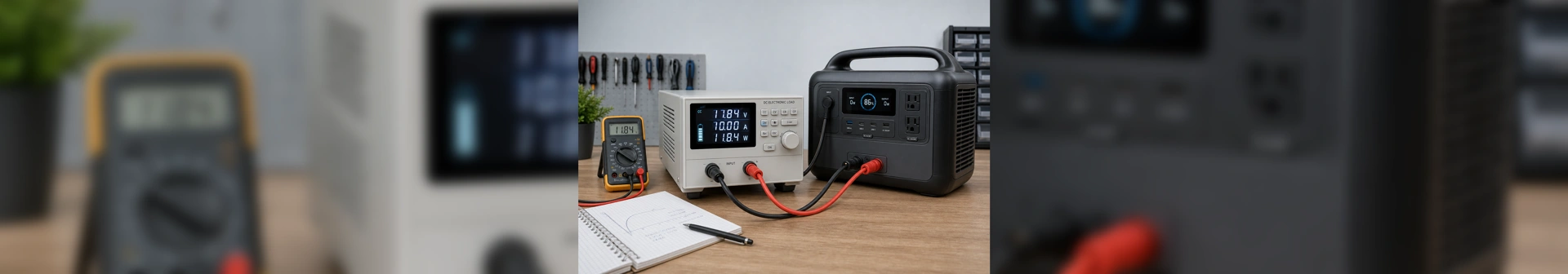

A DC electronic load tester with constant-current or constant-power mode is the heart of any battery capacity test. It drains the cell at a controlled rate while you log voltage over time. Pair it with an accurate multimeter to verify starting and cutoff voltage, plus properly rated cables that won't heat up or this product current flow.
Your load tester's wattage rating should exceed the discharge rate you plan to run. Testing a 100 Wh battery at a 20 W draw requires at least a 25 - 30 W load to leave headroom. Consumer-grade models start around forty dollars. Accuracy matters more than a long feature list.
You'll also need a timer or stopwatch to track elapsed minutes and a notebook to log voltage readings every fifteen or thirty minutes. Write down time, voltage, current, and any temperature shifts so you can calculate watt-hours after the test. Optional items include a temperature probe if you're testing in a garage or outdoors where ambient heat swings more than ten degrees, since thermal drift affects internal resistance and usable capacity.
Check that your cables match the current you'll pull. Thin wire adds resistance, heats up, and skews your measurements. Insulated alligator clips or ring terminals rated for at least 150 percent of your target load prevent connection errors mid-test.
Step 1: Preparing Your Battery for an Accurate Test
Charge the battery to 100% before you start. Most battery management systems display a percentage; wait until it reads full and the charging indicator stops. Check the voltage on your multimeter or the built-in display. It should match the nominal full-charge specification in the product manual - typically 12.6 V for a 12 V lead-acid pack, 13.0 V for LiFePO4, or 12.6 V for a three-cell lithium-ion configuration.
Let the battery rest for at least thirty minutes after charging. Surface charge dissipates during this period, and the voltage stabilizes to a true resting level. Testing immediately after unplugging often inflates your starting voltage and skews the capacity calculation.
Avoid extreme ambient temperatures. Lithium batteries deliver 20 - 30% less usable capacity at 0°C compared to 25°C, and lead-acid packs show even steeper drops in freezing conditions. If you test indoors at 20 - 25°C, your result will be closer to the manufacturer's rated capacity, which is almost always measured at room temperature.
Record the starting voltage and the ambient temperature in your test log. These two numbers form the baseline for interpreting your watt-hour result. A battery tested at 5°C and 12.4 V will report lower capacity than the same cell tested at 23°C and 12.6 V, even if both are nominally full.
Step 2: Connecting the DC Electronic Load Tester
Turn the load tester off before you touch any terminals. Connect the red positive lead to the battery's positive terminal, then attach the black negative lead to the negative terminal. A reversed polarity can damage both the tester and the battery.
Check the connection twice. Wiggle each clamp gently to confirm metal-on-metal contact. Loose connections introduce resistance, which generates heat and skews your current readings low.
Power on the tester and observe the no-load voltage. It should match the multimeter reading you took in Step 1. A significant difference signals poor contact or internal resistance at the terminal point.
Tighten any loose clamps before you begin the discharge test. Secure connections ensure the full programmed current flows through the battery, not through a resistive gap that turns watts into wasted heat.
Step 3: Configuring the Test Parameters (Constant Current or Power)
Most load testers offer two discharge modes: constant current and constant power. Constant current holds a fixed amperage throughout the test, even as battery voltage drops. Constant power adjusts current upward to maintain steady wattage as voltage sags under load. For simulating real appliances that consume a consistent number of watts, constant power mode delivers the most accurate picture of usable capacity.
Set your discharge rate to mimic realistic use. A rate of 10% to 20% of the rated capacity per hour mirrors typical draw from portable electronics, fans, or small tools. If you're testing a 100 Ah battery, a 10 A to 20 A load keeps the test practical and avoids stressing cells beyond normal operating conditions. Faster rates finish the test sooner but can mask thermal effects or voltage sag that occur during extended runtime.
Cutoff voltage protects the battery from over-discharge. Lithium-ion packs rated at 12 V nominal should stop between 10 V and 11 V, depending on the manufacturer's minimum specification. Lead-acid batteries typically cut off around 10.5 V. Check the datasheet or label for the exact lower limit. Dropping below that threshold shortens cell lifespan and may trigger protection circuits that shut down output entirely. Enter the cutoff value into the tester before starting the discharge cycle, and the unit will stop automatically when the battery reaches that floor.
Step 4: Running the Discharge Test and Monitoring the Process
Start the discharge and record the timestamp the moment the load tester begins drawing current. Discharge duration depends entirely on your load setting: a 500Wh battery discharged at 100W should run close to five hours if the manufacturer's rating is honest. If it shuts off at three hours, you know the real capacity is much lower.
Log voltage, current, and cumulative watt-hours every fifteen to thirty minutes. This interval catches sudden voltage sags, current spikes, or other anomalies that indicate aging cells or internal resistance problems. Most modern load testers display a running watt-hour total on-screen. If yours does not, you will calculate manually by multiplying average voltage by current by elapsed time, then converting to watt-hours.
Expect the battery to warm slightly during discharge. Acceptable warmth is normal - chemistry and internal resistance both generate heat. Excessive heat, however, suggests degraded cells or poor connections. If the case becomes too hot to touch comfortably, stop the test and inspect terminals, cables, and cell balance.
Watch the voltage curve as capacity drains. A healthy battery holds voltage steady through most of the discharge, then drops sharply near the end. A weak battery sags early and unevenly, signaling high internal resistance or cell mismatch.
Step 5: How to Read the Results and Calculate True Watt-Hours
Once the test completes, you need to turn raw data into a usable watt-hour figure. Many DC load testers display total watt-hours delivered directly on the screen or in their companion app. If yours does, that number is your measured capacity.
When your tester only logs voltage, current, and time, calculate manually. Multiply average voltage by average current by total discharge hours: V_avg × A_avg × hours = watt-hours. Average voltage is the mid-point between your starting voltage and cutoff voltage. Average current is your constant load setting if resistance stayed stable, or the mean of logged current readings if it drifted.
Compare your result to the manufacturer's rated capacity. Seeing 85 to 95 percent of the label claim is normal. Inverter conversion losses, battery management system overhead, and internal resistance all consume a small portion of stored energy before it reaches your device. Results between these this product confirm the cell chemistry and build quality match what was advertised.
Results below 80 percent signal a problem. The battery may be worn from age or deep-cycle abuse. It may have been inaccurately rated from the factory, a common issue with budget lithium packs that round up optimistically. Or it may use lower-grade cells than the marketing copy suggests, delivering less energy density than premium alternatives.
This measured number represents usable capacity under your specific test conditions: the discharge rate you chose, the ambient temperature during the test, and the cutoff voltage you applied. It is the real figure that determines how long your lights stay on during an outage, not the number printed on the label.
Common Factors That Affect Battery Capacity Test Results
Ambient temperature shifts measured capacity by 10% to 20% between freezing and room temperature. Cold slows the chemical reactions inside lithium-ion and lead-acid cells, dropping usable watt-hours even though the battery is healthy. Test indoors at 68°F to 77°F for numbers you can compare against the manufacturer's rating.
Higher discharge rates reduce total watt-hours because internal resistance wastes energy as heat. A 100 Ah battery might deliver 95 Ah at 5 amps but only 85 Ah at 20 amps. Testing at multiple loads shows how the pack performs under light and heavy draw - camping lights versus power tools, for instance.
Battery age and cycle count lower capacity over time. A three-year-old pack that has been charged 500 times will test below its original spec. That's normal wear, not a defect. If capacity drops below 80% of the label rating, plan a replacement before the pack leaves you stranded.
Cheap battery management systems waste power on inefficient voltage conversion and phantom drain. A BMS that pulls 100 milliamps when idle can bleed 2.4 Ah per day, skewing the discharge test if you measure over 24 hours. Disconnect loads completely between test sessions to isolate cell capacity from system overhead.
A single test is a snapshot. Repeating every six months tracks degradation and warns when performance crosses the threshold where backup time or off-grid runtime becomes too short. Log the date, temperature, discharge current, and final watt-hours so you can spot trends before the battery fails in the field.
Pre-Test Checklist: Avoid These Common Mistakes
- Fully charge the battery and let it rest at least 30 minutes before testing
- Verify polarity twice before connecting the load tester
- Set cutoff voltage to the manufacturer's minimum safe level for your battery chemistry
- Choose a discharge rate between 10% and 20% of rated capacity for realistic results
- Record ambient temperature and starting voltage as test baselines
- Monitor the test periodically; never leave a discharging battery completely unattended
What to Do When Results Fall Short of the Rated Capacity
A significant gap between rated and measured capacity demands action. Start by repeating the test under controlled conditions: charge the battery fully at room temperature, let it rest thirty minutes, then discharge at the same current you used the first time. A rushed test or extreme ambient temperature can produce outliers.
If the second run confirms a large shortfall, your decision depends on the battery's age. Lithium-ion cells fade over time. Industry standard allows 80 percent of original capacity after 500 full charge cycles - a two-year-old battery showing 85 watt-hours instead of 100 is behaving normally. Older units delivering 70 percent may still be useful for less critical loads.
New batteries are a different story. A twenty or thirty percent deficit on a recent purchase suggests a manufacturing defect or misleading specification. Most warranty claims require documented evidence: your discharge log, timestamps, ambient temperature, and current settings. Print the data. Photograph your test setup. Manufacturers will ask for proof before approving a return or replacement.
Frame the decision around real-world impact. A five percent shortfall rarely matters; you lose a few minutes of runtime. A thirty percent gap means your portable power station will shut down halfway through the medical device cycle you planned, or your jump starter will deliver two cranking attempts instead of three. The risk shifts from inconvenience to failure during an emergency.
Knowing true capacity also prevents cascading mistakes. If you size a solar array or backup generator around inflated watt-hour claims, you underbuild the system. Testing once, early, lets you adjust your power budget before you depend on it. The hour spent verifying specs saves you from discovering the shortfall when the grid drops or the trail stretches longer than expected.
